适用范围 Apply the scope
Beverage: Beer, Juice, wine category, Milk Etc.
Foodstuff: Grease, Take off the la, Take off the color, Degrease, Vinegar, Sugar juice, Curative: An oxygen water, Vitamin Etc.
Other: Air, Water of Decontamination Etc.
ZBL series paperboard filters are high efficiency energy-saving precision filtering closed operation solid-liquid separation equipment. They are extensively applied in chemical, petroleum, oil pharmaceutical, and other industries.
The filter is of closed barrel with several horizontal filtering plates which sandwich filtering papers. It uses filtering paper as the filtering medium and filters by pressure within the closed barrel. When in operation, liquid is pumped into the barrel then it flows to the filtering plates through small holes around the outer side of the filtering plate, then the liquid penetrates the filtering papers and the perforated supporting plate and enters into the center channel of the filtering plate then discharges from bottom of the machine, fine filtering effect is achieved. When the filtering process is finished, residuals in the filter are ejected by compressed air.

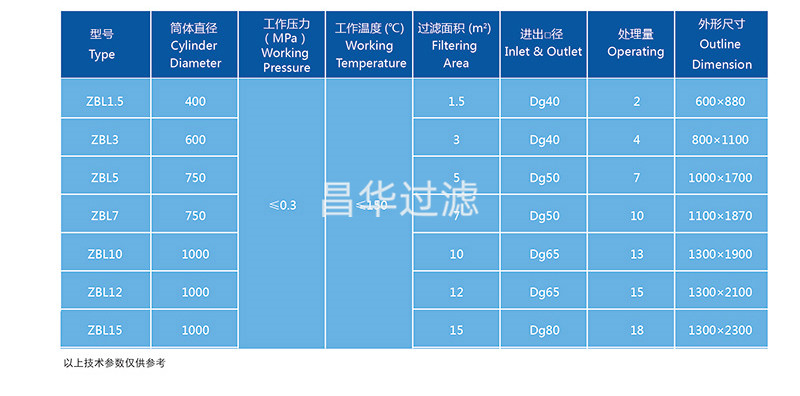

技术参数 Technique parameter
