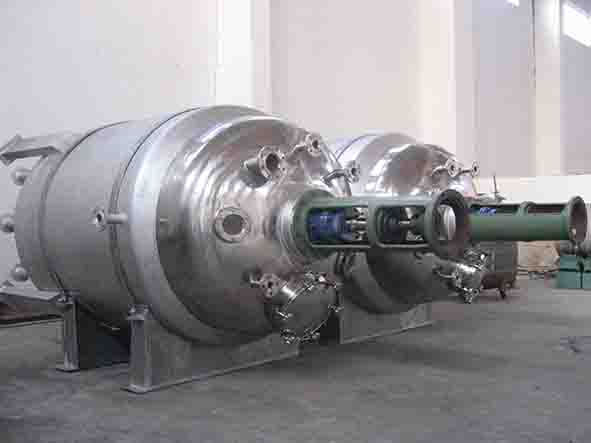

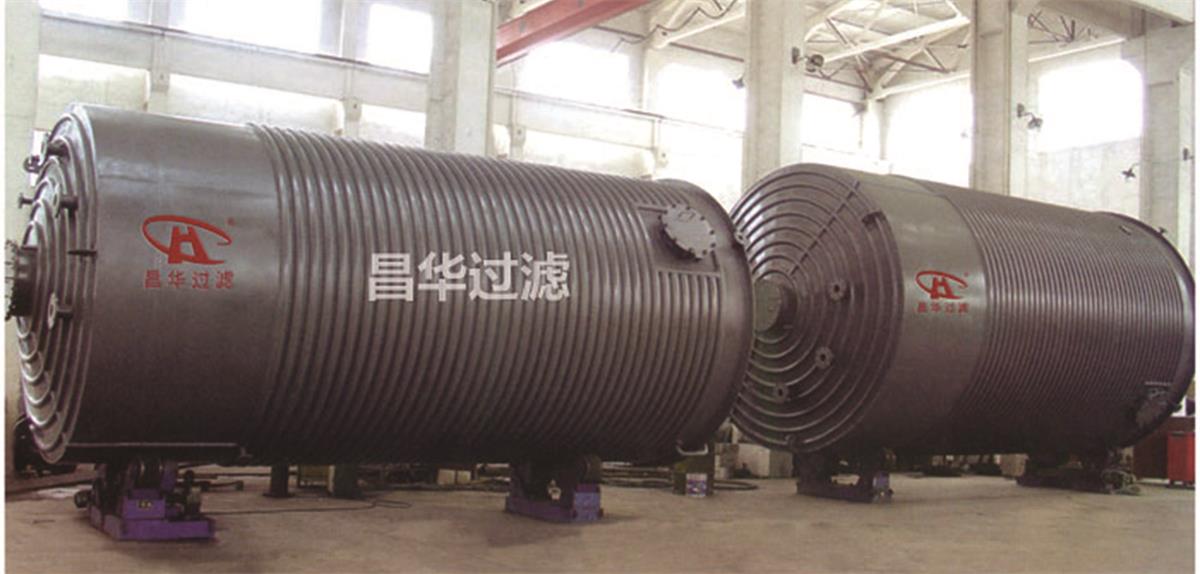

反应釜是化工、医药等行业传统的生产设备，在液-液混合、液-粉混合等传统工艺中发挥重要的作用。可根据客户的需求，配制各种的搅拌桨， 以达到不同的反应效果。反应釜的容量、外形尺寸和送料方式可根据现场环境设计，配合生产流程。是传统化工行业的必须生产设备。 我公司生产的（电、蒸汽、导热油加热）反应釜由上下封头、内筒、夹套(内盘管、外盘半管)、搅拌器、轴封、搅拌传动装置及支承等组成，根据生产工艺、操作条件，夹套加热型式分为电热棒加热、蒸汽加热、导热油加热，轴封装置分为填料密封和机械密封，搅拌型式有锚式、浆式、蜗轮式、推进式和框式等。开孔数量、规格、材质或其它要求可根据用户要求设计、制作。
Reactor is a traditional production equipment in chemical and pharmaceutical industries. It plays an important role in traditional processes such as liquid-liquid mixing and liquid-powder mixing. Various kinds of agitators can be prepared according to the needs of customers to achieve different reaction effects. The capacity, size and feeding mode of the reactor can be designed according to the site environment and cooperate with the production process. It is the necessary production equipment in traditional chemical industry. The reaction kettle produced by our company is composed of top and bottom heads, inner cylinders, jackets (inner coil, outer half-tube), agitators, shaft seals, mixing transmission devices and supports. According to production process and operation conditions, jacket heating types are divided into electric heating rod heating, steam heating, heat conducting oil heating, and shaft packaging devices are divided into packing seals and mechanical seals, stirring. The mixing type includes anchor type, slurry type, worm wheel type, push type and frame type. The number, specifications, materials or other requirements of openings can be designed and manufactured according to user's requirements.
压力容器的操作条件十分复杂，甚至近于苛刻。压力从1～2×10－5Pa的真空到高压、超高压，如石油加氢为10.5～21.0 MPa；高压聚乙烯为100～200 MPa；合成氨为10～100 MPa；人造水晶高达140 MPa；温度从-196º C低温到超过一千摄氏度的高温；而处理介质则包罗爆、燃、毒、辐(照)、腐(蚀)、磨(损)等数千个品种。操作条件的复杂性使压力容器从设计、制造、安装到使用、维护都不同于一般机械设备，而成为一类特殊设备。
The operating conditions of pressure vessels are very complicated, even close to harsh. Pressure ranges from vacuum to high pressure and ultra-high pressure, such as petroleum hydrogenation to 10.5-21.0 MPa, high pressure polyethylene to 100-200 MPa, synthetic ammonia to 10-100 MPa, artificial crystal to 140 MPa, temperature from -196 unitary C to over 1,000 degrees Celsius, and treatment medium includes explosion, combustion, poison, irradiation, decay, abrasion and other thousands of varieties. The complexity of operating conditions makes pressure vessels different from general mechanical equipment in design, manufacture, installation, use and maintenance, and become a special kind of equipment.
